Die Finishing Machines



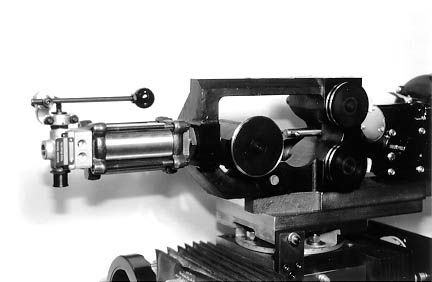

MGF-200

Die Saver

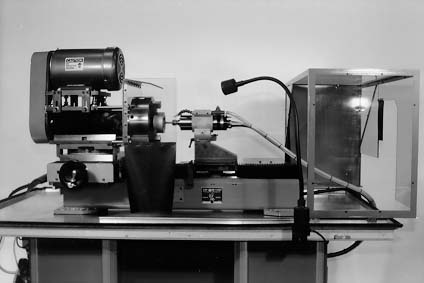

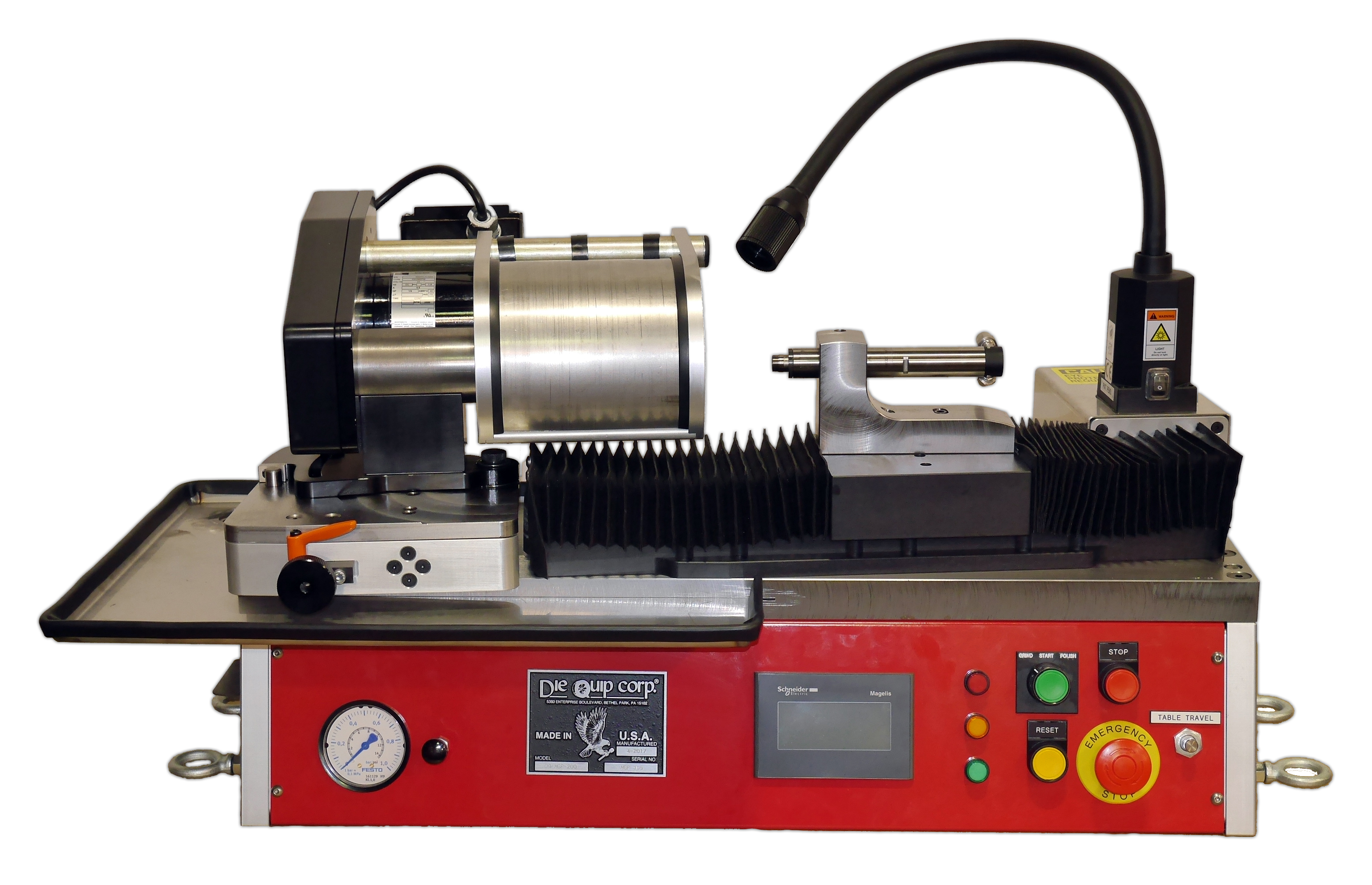

Our MGF is a semiautomatic die grinding and polishing machine that has a powerful air spindle to cut dies using the meeting point method or bumping to the next size.  Its angle setting gages control die geometry very accurately.  It can be used in small volume die shops on its own or combined with the HDF or Die Flex MA for medium production needs.
Inside Diameter Capacity: .020-.625" (0,5-16,0mm)

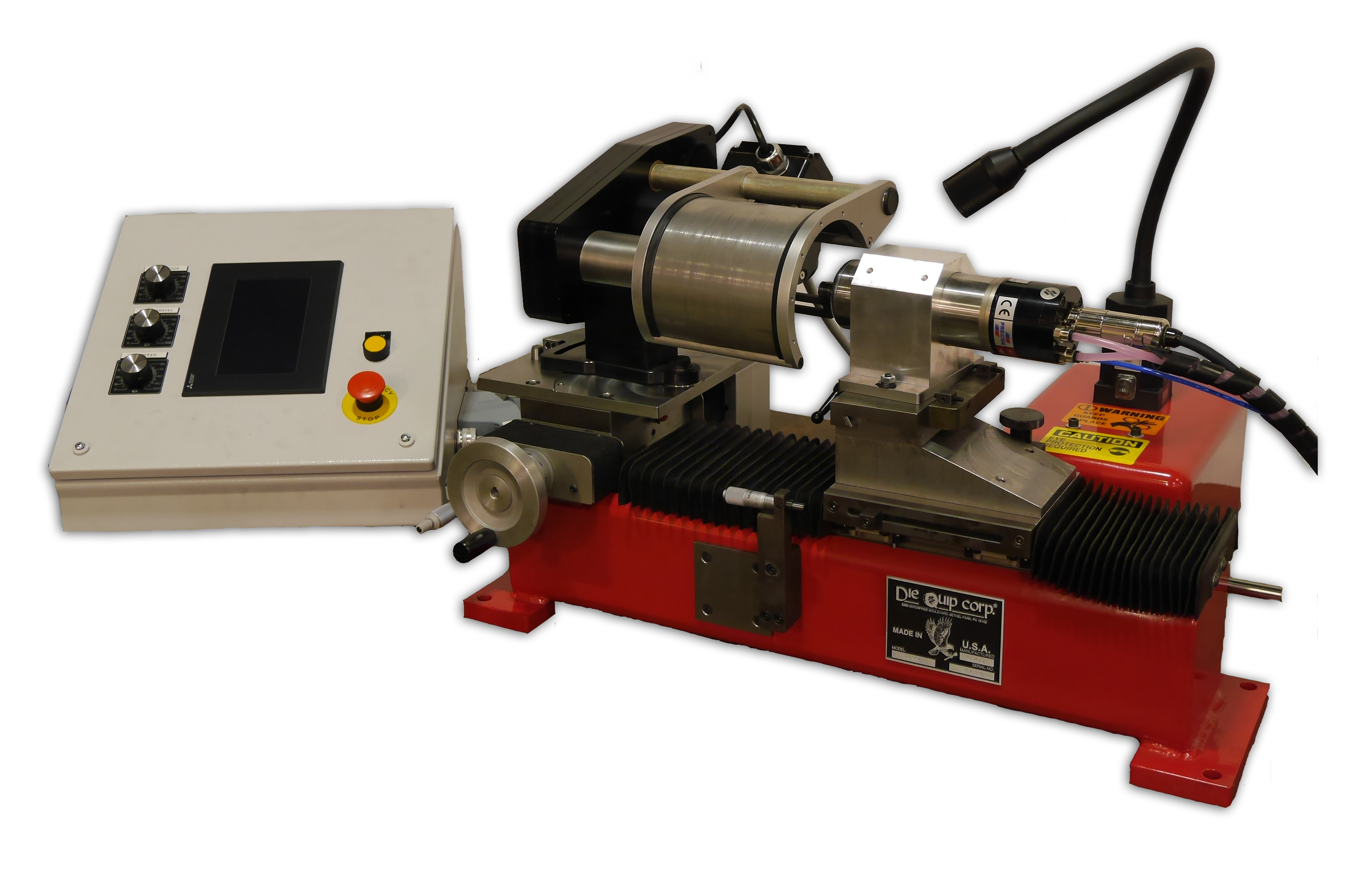

BG/4 Semi-Automatic Die Grinder

Semi-Automatic Die Grinder

The BG/4 is a semiautomatic internal grinder specifically designed for grinding wire, bar and tube dies along with other related tooling made from tungsten carbide, ceramic and hardened steel. It is easy to operate with features that will ensure consistent results in producing accurate dies. The specially designed plunge grinding setup cuts .020" per minute reducing labor costs and reclaims dead inventory. Die Geometry is controlled through preset machine settings which consistently grind each die the same giving repeatable results from one operator to the next. A digital micrometer accurately controls the amount of stock removal while the autofeed cycle frees the operator for multiple tasks. The BG/4 has a 4" Chuck 0-4" (0-100 mm) work holding capacity and an angle capacity from 0-40° included. The internal grinding capabilities range from .04-1" (1.00-25mm).
- Detailed Views

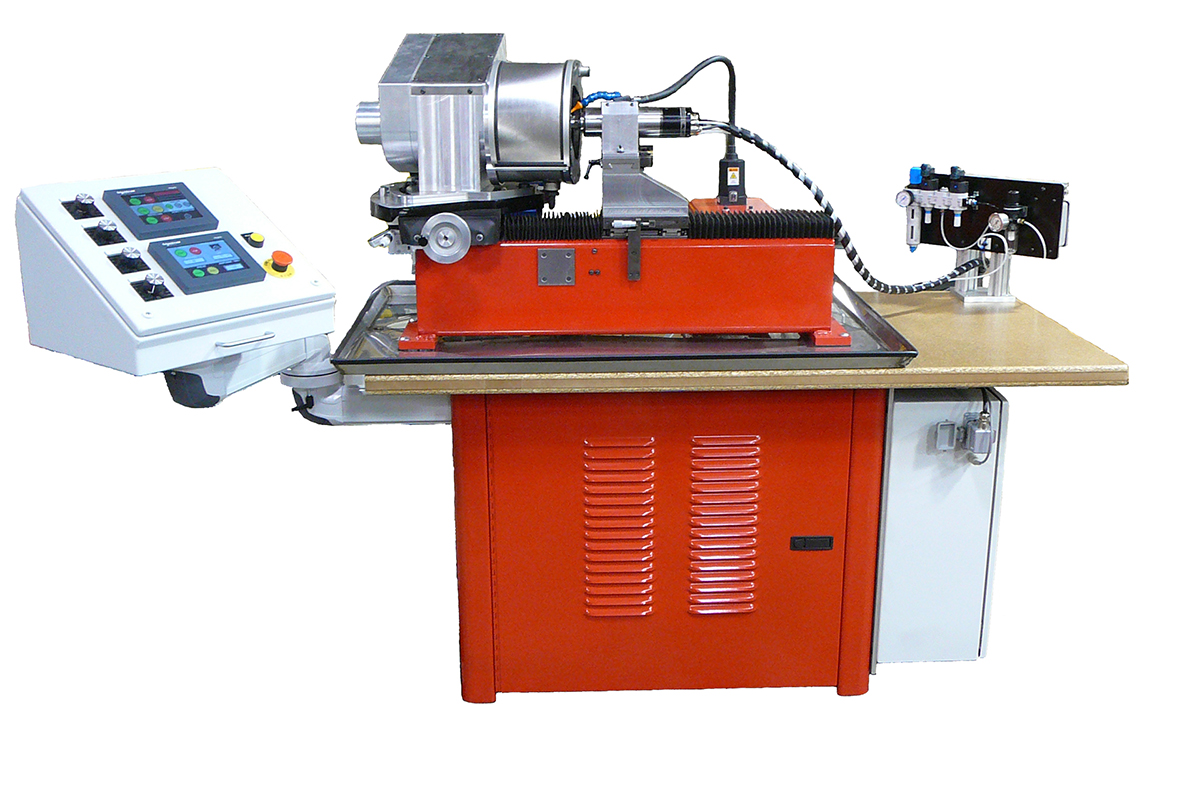

BG/6 Semi-Automatic Die Grinder

Die Grinder

The BG/6 is a semiautomatic internal grinder specifically designed for grinding wire, bar and tube dies along with other related tooling made from tungsten carbide, ceramic and hardened steel. It is easy to operate with features that will ensure consistent results in producing accurate dies needed to hold close tolerances for a competitive edge. The specially designed plunge grinding setup cuts .020" per minute reducing labor costs and reclaims dead inventory. Die Geometry is controlled through preset machine settings which consistently grind each die the same giving repeatable results and more output per day. A digital micrometer accurately controls the amount of stock removal while the autofeed cycle frees the operator for multiple tasks. The BG/6 has a 5" Chuck 0-5" (0-127 mm) or 6" Chuck 0-6" (0-152 mm) work holding capacity and an angle capacity from 0-40° included. The internal grinding capabilities range from .040-2" (1-50mm). - Detailed Views




BG/10 Semi-Automatic Die Grinder

Die Grinder

The BG/10 is a semiautomatic internal grinder specifically designed for grinding large diameter bar and tube dies. It is easy to operate with features that will ensure consistent results in producing accurate dies. Die Geometry is controlled through preset machine settings which consistently grind each die the same giving repeatable results. A digital micrometer accurately controls the amount of stock removal while the autofeed cycle frees the operator for multiple tasks. The BG/10 has chuck capabilities of up to 12.5" (318 mm) and an angle capacity from 0-40° included. The internal grinding capabilities range from .250-6" (6-152mm). - Detailed Views

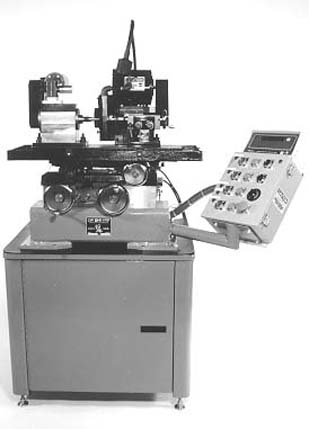

PLG Plug and Mandrel Grinder

Plug and Mandrel Grinder

The Plug Grinder is a cylindrical outside diameter grinder specifically designed to grind tube drawing semi and full-floating plugs and mandrels. It is capable of grinding tungsten carbide, ceramic and hardened steel parts. The Plug Grinder has a semi-automatic grinding cycle that is set by a digital micrometer with an adjustable plunge feed. It also features a second slide to allow the form wheel to travel parallel to the angle on the plug. This machine will allow operators to produce, rework and maintain the highest quality plugs to meet closer tolerances, improved surface finishes and reduced lead times.
-
Detailed Views

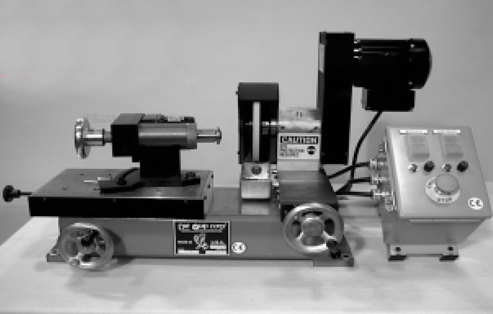

PG3 Pin Grinder

Pin Grinder

The PG-3 Pin Grinder is a table top manually operated outside diameter grinder specifically designed to redress angles lapping tools. It uses an aluminum oxide grinding wheel and is capable of grinding all grades of steel and wood laps. It features a sign bar with angle blocks to set the angle to be ground and to ensure accuracy and repeatability. The PG-3 is easy to operate and uses standard ER20 collets from 1/64" - 1/2". Other features include an adjustable depth stop, positive zero stop and a vacuum system to remove grinding dust during operation. - Detailed Views




Punch, Bushing ID, and Custom Grinder

Bushing and Custom Grinder

Die Quip has built a number of different ID grinders to quickly and accurately produce die buttons, drill bushings, collets, and other large quantity ID grinding jobs. Contact us to see if we can solve your grinding problems. - Detailed Views
